What are the components of the gantry CNC welding machine?

A gantry CNC (Computer Numerical Control) welding machine is a type of automated welding system designed for high precision and efficiency in welding operations. These machines are commonly used in industries such as automotive, aerospace, shipbuilding, and heavy machinery manufacturing.

Gantry CNC welding machine components

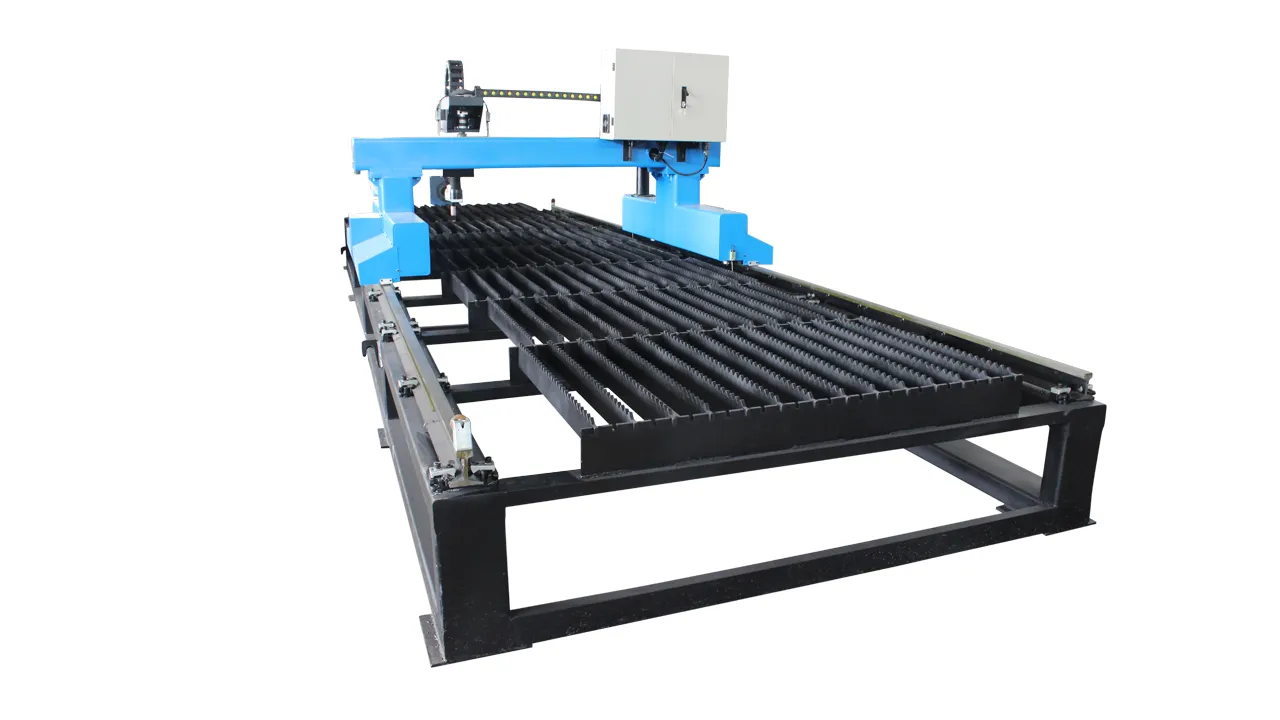

Gantry CNC welding machine

Gantry Frame:

The main structural component that moves the welding head along the X and Y axes.

Built from strong materials to withstand the forces and heat generated during welding.

CNC Controller:

The brain of the machine that controls all movements and welding parameters.

Can be programmed with specific welding paths and parameters for different jobs.

Welding Power Source:

Supplies the electrical energy needed for the welding process.

Can be adjusted to different power levels based on the welding requirements.

Welding Head/Torch:

The tool that performs the welding operation.

Can be equipped with different types of welding torches depending on the application.

Drive System:

Includes motors, drives, and transmission systems that move the gantry and welding head.

Often uses servo motors for precise control.

Cooling System:

Cools the welding head and other components to prevent overheating.

Can include water cooling or air cooling systems.

Safety Systems:

Includes features such as emergency stop buttons, safety curtains, and sensors to protect operators and equipment.

Key Features

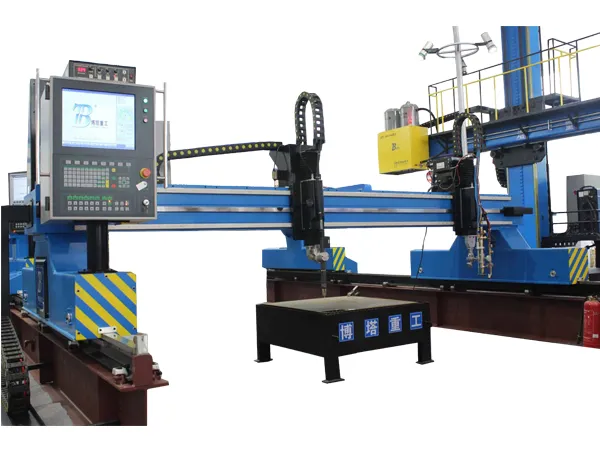

Gantry CNC welding machine

Gantry Structure:

The machine has a gantry frame that moves along the X and Y axes, allowing for precise positioning of the welding head.

The gantry structure is robust and can support heavy welding equipment.

CNC Control:

The machine is equipped with a CNC system that controls the movement of the gantry and the welding parameters.

The CNC system can store and execute complex welding programs.

Multi-Axis Movement:

In addition to the X and Y axes, the machine may have additional axes for more complex movements, such as the Z-axis for vertical movement and rotational axes for angular welding.

Welding Head:

The welding head can be equipped with different types of welding tools, such as MIG, TIG, or plasma welding torches.

The head can be programmed to follow precise welding paths.

Precision and Repeatability:

High precision and repeatability are achieved through the use of servo motors, linear guides, and ball screws.

Workpiece Handling:

The machine may include automated workpiece handling systems, such as conveyors, clamps, and rotators, to position and secure the workpiece during welding.

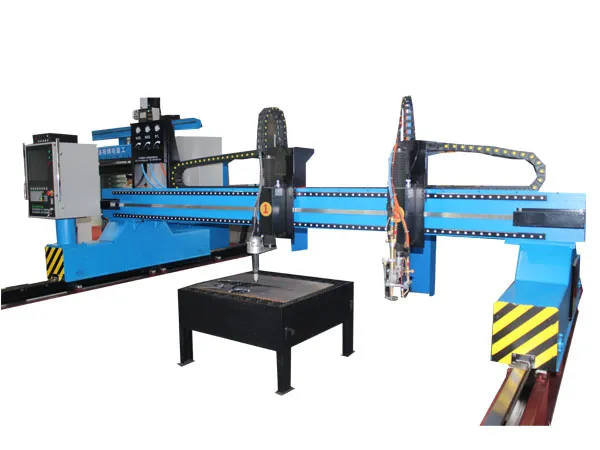

Gantry CNC welding machine

Increased Productivity:

Automated operation allows for continuous welding with minimal human intervention.

Reduces the time required for setup and changeovers.

High Precision and Consistency:

CNC control ensures precise and repeatable welding operations.

Reduces the likelihood of human error.


Can be programmed for a wide range of welding tasks and workpieces.

Easily adjustable for different welding parameters and materials.

Improved Quality:

Consistent welding parameters result in higher quality welds.

Reduced risk of defects and rework.

Cost Efficiency:

Reduces labor costs by automating the welding process.

Increases material utilization and reduces waste.

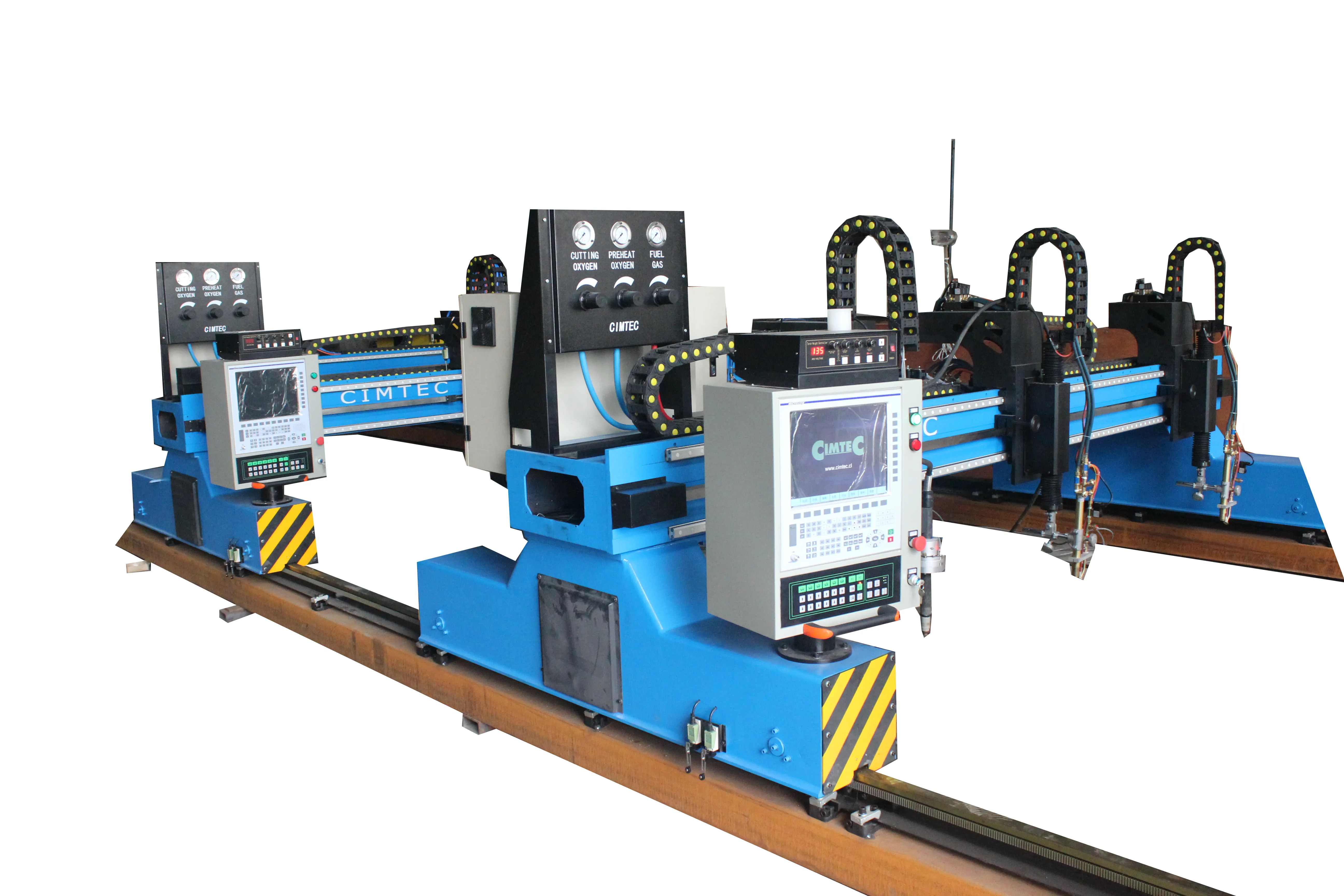

Gantry CNC welding machine

Automotive Industry: Welding of chassis, frames, and other components.

Aerospace Industry: Precision welding of aircraft parts and assemblies.

Shipbuilding: Welding of large sections of ships and marine structures.

Heavy Machinery: Fabrication of large and complex machinery parts.

Construction: Welding of steel structures, beams, and columns.

In summary, a gantry CNC welding machine is a versatile and efficient solution for high-precision welding tasks, offering significant advantages in terms of productivity, quality, and cost savings.
