What is the working principle of gantry welding machine

A gantry welding machine, also known as a gantry welder or gantry system, is a type of welding equipment used for automated welding processes. It typically consists of a gantry framework, welding equipment (such as a welding power source and welding torch), motion control system, and sometimes vision systems for guidance.

Working principle of gantry welding machine

Gantry Framework: The gantry framework provides a sturdy structure that supports the welding equipment and allows for precise movement along multiple axes. It often consists of horizontal beams (gantry), vertical columns, and a carriage or platform that holds the welding equipment.

Welding Equipment: This includes a welding power source and a welding torch suitable for the specific welding process (such as MIG, TIG, or plasma welding). The welding equipment is mounted on the gantry and positioned to perform the welding operation accurately.

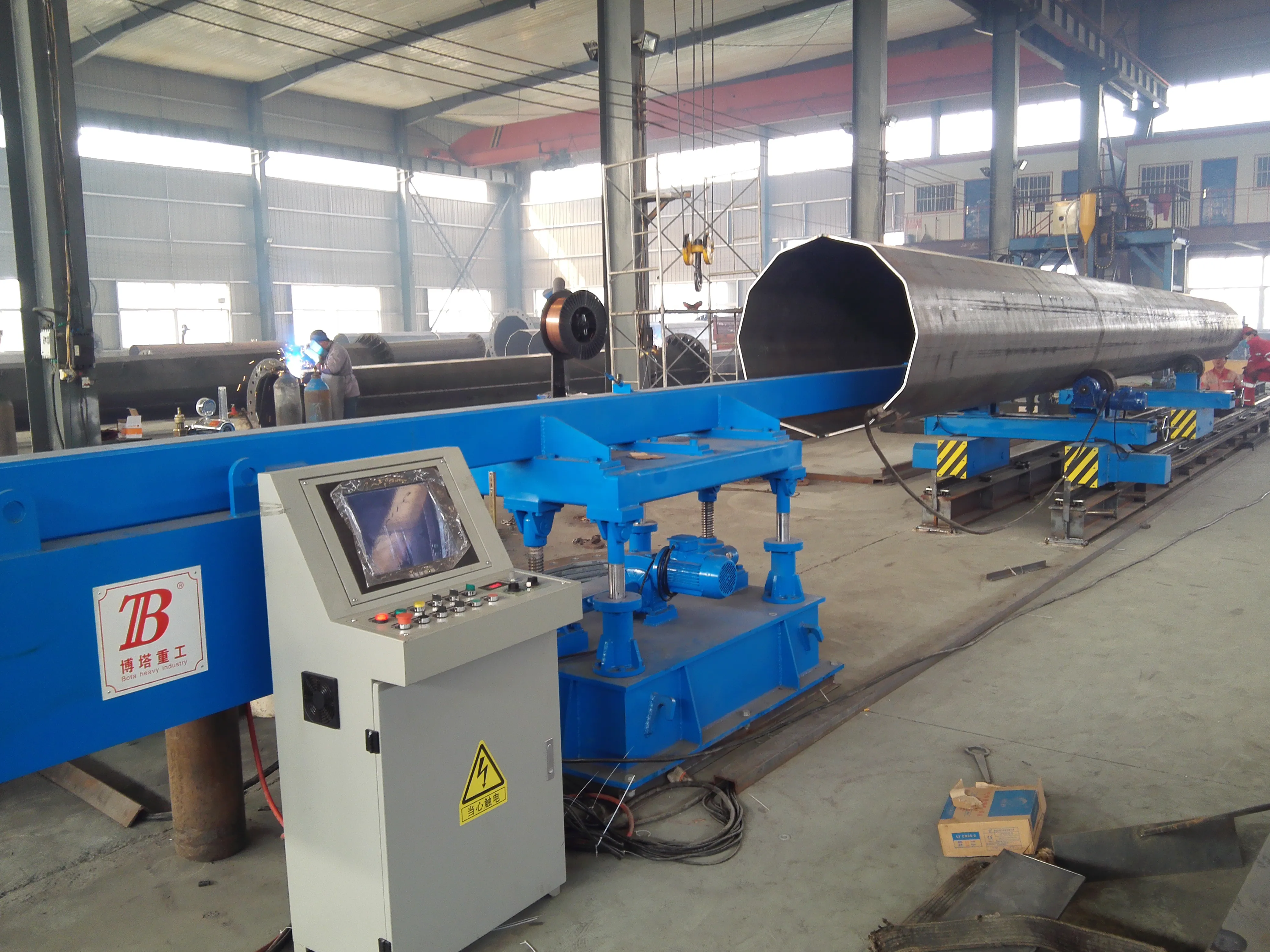

gantry welding machine

Motion Control System: The motion control system controls the movement of the gantry and the welding equipment. It typically includes motors, drive systems, and controllers that coordinate the movement along various axes (such as X, Y, and Z axes) with high precision. This system ensures that the welding torch moves accurately along the intended path to create the desired weld joint.

Programming: Gantry welding machines are often programmable, allowing users to input welding parameters and define the welding path. Programming can be done manually through a user interface or automatically through CAD/CAM software. The programmed instructions dictate the trajectory of the welding torch, the welding parameters (such as voltage, current, and wire feed speed), and any necessary adjustments for different welding tasks.

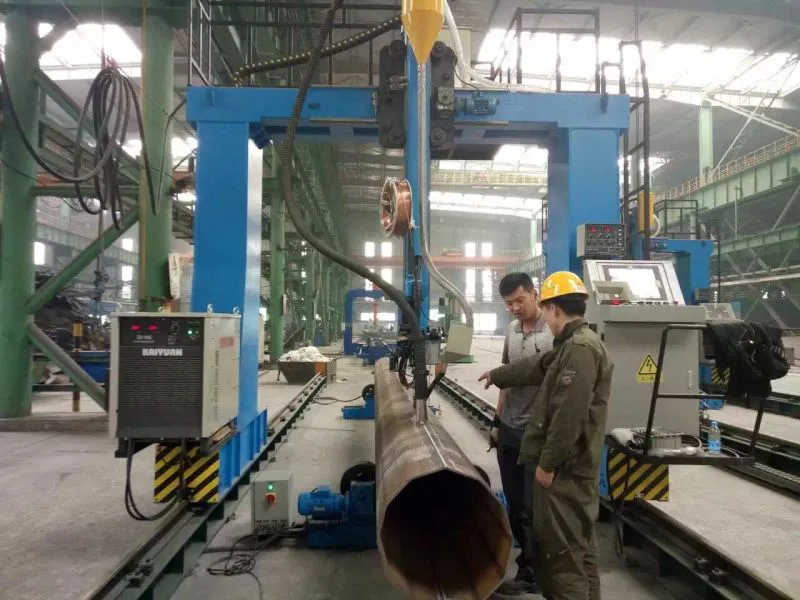

gantry welding machine

Welding Process: Once the gantry welding machine is set up and programmed, the welding process begins. The motion control system moves the welding torch along the programmed path, depositing filler material (if required) and applying heat to join the workpieces together. The welding parameters are carefully controlled to ensure proper fusion and metallurgical bonding between the materials being welded.

Monitoring and Quality Control: Some gantry welding machines may incorporate sensors or vision systems to monitor the welding process in real-time. These systems can detect defects, deviations from the programmed path, or other issues that may affect the quality of the weld. Operators can use this feedback to make adjustments and ensure that the welding process meets the required standards.

Overall, the working principle of a gantry welding machine involves precise control of motion, welding parameters, and process variables to automate the welding operation and produce high-quality welds efficiently.
