What parts does a gantry CNC cutting machine consist of?

A gantry CNC cutting machine, also known as a gantry CNC plasma cutting machine or gantry CNC router, is a type of computer numerical control (CNC) machine used for precision cutting and machining of various materials. Here are the key components and features of a gantry CNC cutting machine:

Gantry CNC cutting machine composition

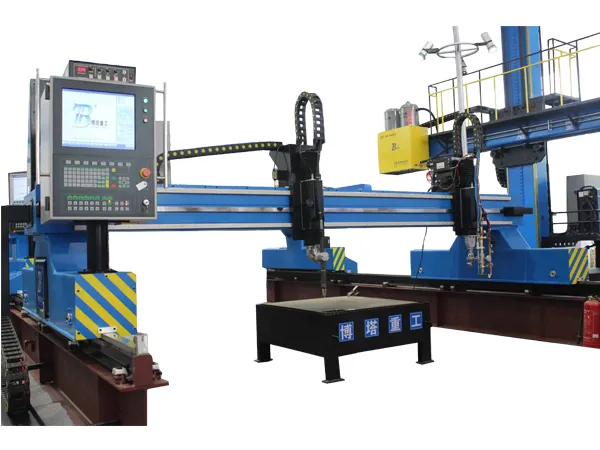

gantry CNC cutting machine

Gantry Structure: The gantry refers to the overhead structure that spans the cutting area. It typically consists of horizontal beams supported by vertical columns. The gantry moves along the length of the cutting table, providing stability and precision during the cutting process.

Cutting Table: The cutting table is the surface on which the material to be cut is placed. It is usually made of steel or aluminum and may be equipped with a grid or slats to facilitate the removal of waste material and improve airflow during cutting.

Cutting Head: The cutting head is mounted on the gantry and contains the cutting tool or torch. In the case of a plasma cutting machine, the cutting head houses the plasma torch, which generates a high-temperature plasma arc to melt and cut through metal. For CNC routers, the cutting head may include a spindle or router bit for milling, engraving, or carving operations.

CNC Controller: The CNC controller is the brain of the machine, responsible for interpreting the cutting program and sending commands to the motors and actuators that control the movement of the gantry and cutting head. It typically consists of a computer with specialized software for generating toolpaths and G-code instructions.

Drive System: The drive system consists of motors, gears, and belts or lead screws that move the gantry and cutting head along the X, Y, and Z axes. Stepper motors or servo motors are commonly used for precise positioning and motion control.

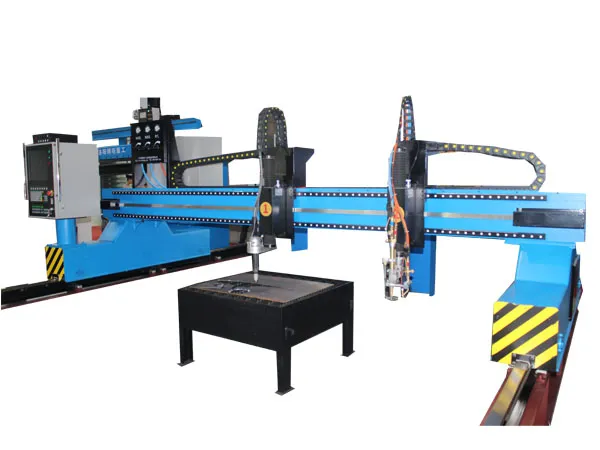

gantry CNC cutting machine

CAD/CAM Software: Computer-aided design (CAD) and computer-aided manufacturing (CAM) software are used to create and optimize cutting paths, generate toolpaths, and generate G-code instructions for the CNC controller. These software programs allow operators to design complex shapes and patterns and simulate the cutting process before execution.

Fume Extraction System: During cutting, especially with plasma cutting, fumes and smoke are generated. A fume extraction system is often integrated into gantry CNC cutting machines to remove these byproducts and maintain a safe working environment.

Coolant System: For certain cutting applications, such as with CNC routers, a coolant system may be employed to reduce heat and friction during cutting, prolonging tool life and improving cutting quality.

Gantry CNC cutting machines are versatile tools used in various industries, including metal fabrication, woodworking, sign making, and aerospace, for cutting, shaping, and machining a wide range of materials with high precision and efficiency.
