What parts does the welding column boom consist of?

A welding column boom, often referred to simply as a "welding boom," is a piece of equipment used in welding applications, particularly in industries such as shipbuilding, construction, and manufacturing. It consists of a vertical column with a horizontal boom arm that can be moved in various directions.

Components and functions of a welding column boom

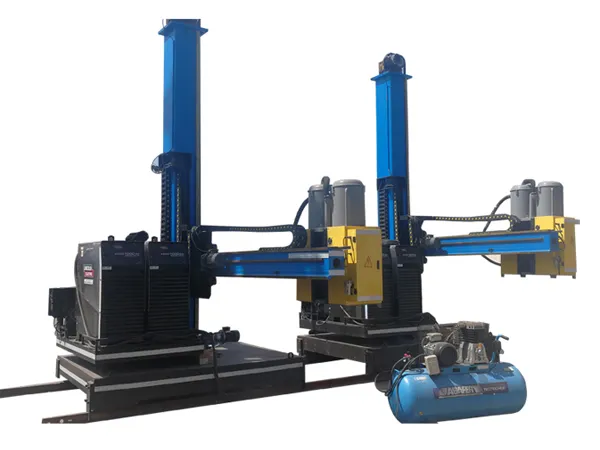

welding column boom

Column: The vertical support structure that holds the boom arm and provides stability. It is usually mounted on a stable base, such as the floor or a platform.

Boom Arm: The horizontal arm extending from the column. It typically houses the welding equipment, such as the welding torch, and can be adjusted both vertically and horizontally to reach the desired welding position.

Motorized Movement: Most welding column booms are equipped with motorized mechanisms that allow for precise movement of the boom arm. This includes vertical movement along the column, horizontal movement along the length of the boom arm, and sometimes rotation of the boom arm.

Controls: Operators can control the movement of the welding boom using various control interfaces. These interfaces may include joysticks, pendant controls, or even remote control systems for increased flexibility and safety.

Positioning and Stability: Welding column booms are designed to position the welding torch accurately and maintain stability during the welding process. This helps ensure consistent weld quality and minimizes the risk of defects.

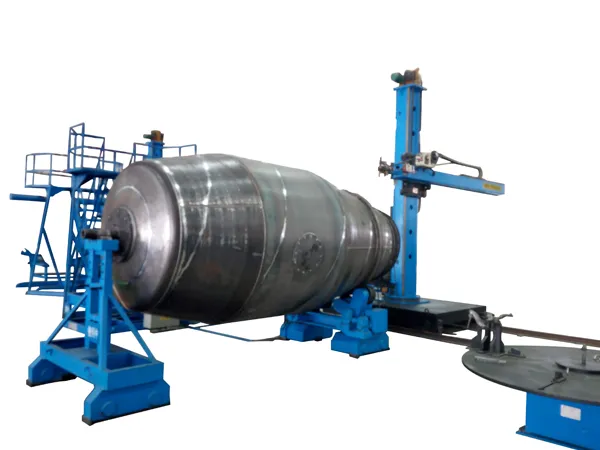

welding column boom

Automation and Integration: Some welding column booms are integrated into automated welding systems, where they work in tandem with robotic welding arms or other automated equipment. This integration allows for even greater precision, efficiency, and repeatability in welding operations.

Overall, welding column booms play a crucial role in various welding applications by providing a stable platform for positioning the welding torch and enabling precise control over the welding process. They are particularly useful for large-scale welding projects where accuracy, efficiency, and safety are paramount.
