What does the welding production line consist of?

A welding production line is a complex assembly setup designed to automate and streamline the welding process, ensuring efficiency, consistency, and quality in the production of welded components. It typically consists of several key components and subsystems, each playing a vital role in the overall operation.

Welding production line composition

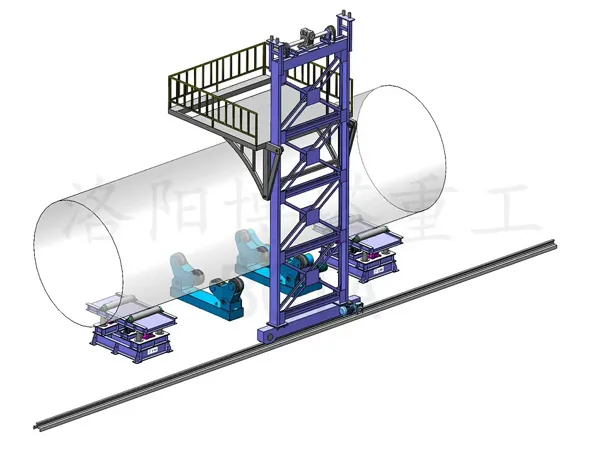

welding production line

1. Workstations

Loading Station: Where raw materials or components are loaded onto the line. This may be manual or automated.

Welding Stations: Dedicated stations where welding operations are performed. There can be multiple welding stations, each handling different types of welds or components.

2. Welding Equipment

Welding Machines: These can be MIG, TIG, spot, laser, or arc welding machines, depending on the application.

Welding Robots: Robotic arms equipped with welding tools for precise and automated welding.

Power Supply: Provides the necessary electrical energy for the welding process.

3. Conveyance System

Conveyors: Transport materials and components between different stations.

Automated Guided Vehicles (AGVs): Move parts around the production line autonomously.

Turntables and Positioners: Rotate and position parts for welding, ensuring proper alignment.

4. Fixtures and Jigs

Clamps and Holders: Secure components in place during welding.

Custom Jigs: Designed to hold specific parts in the correct orientation and position.

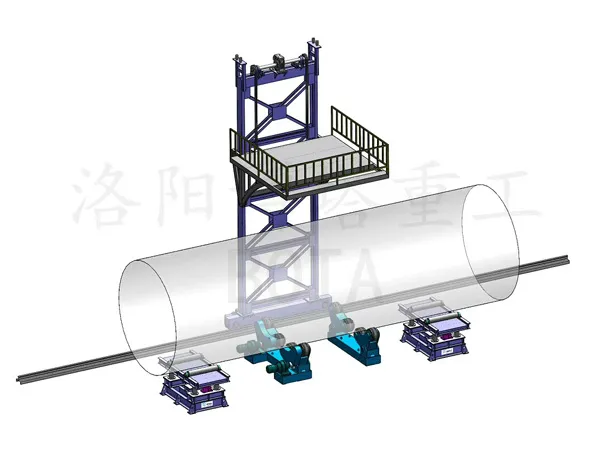

welding production line

5. Quality Control Systems

Inspection Stations: Automated or manual stations where welds are inspected for quality.

Non-Destructive Testing (NDT) Equipment: Such as X-rays, ultrasonic, or magnetic particle inspection to ensure weld integrity.

Sensors and Cameras: Monitor the welding process in real-time, detecting defects or inconsistencies.

6. Control Systems

Programmable Logic Controllers (PLCs): Control the operation of the production line, managing timing, sequencing, and coordination of various tasks.

Human-Machine Interface (HMI): Interface for operators to control and monitor the production line.

Robotic Controllers: Specialized controllers for managing robotic arms and ensuring precise movements.

7. Safety Systems

Fume Extraction Systems: Remove harmful welding fumes and gases from the work area.

Safety Barriers and Guards: Protect workers from hazards.

Emergency Stop Mechanisms: Allow immediate shutdown of the production line in case of an emergency.

8. Material Handling Systems

Feeders and Hoppers: Supply raw materials to the production line.

Storage Racks: Hold components and finished products.

Sorting Systems: Organize and distribute components to the appropriate stations.

9. Data Acquisition and Monitoring

Sensors: Monitor parameters such as temperature, voltage, current, and speed.

Data Loggers: Record operational data for analysis and optimization.

Software Systems: Provide real-time monitoring, data analysis, and reporting.

10. Auxiliary Equipment

Cooling Systems: Ensure welding machines and components do not overheat.

Cleaning Systems: Remove debris and contaminants from components before and after welding.

Maintenance Tools: For routine maintenance and repairs of the production line.

Example Flow of a Welding Production Line

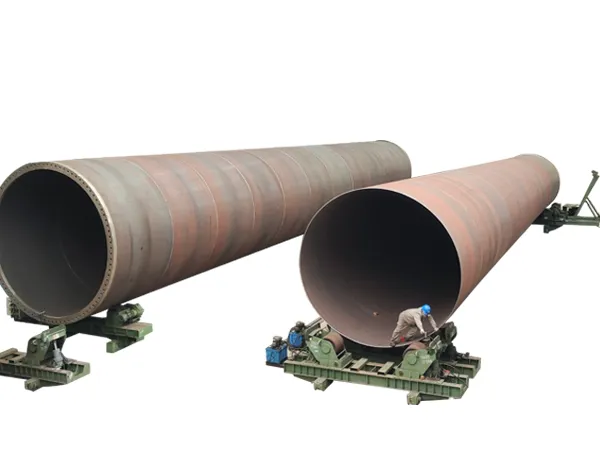

welding production line

Loading: Raw materials/components are loaded onto the line.

Pre-Processing: Components may be cleaned, cut, or prepared.

Positioning: Parts are positioned using jigs and fixtures.

Welding: Welding machines or robots perform the welds.

Inspection: Welds are inspected for quality.

Post-Processing: Additional operations like grinding, polishing, or painting.

Unloading: Finished products are removed from the line and sent to storage or shipping.

By integrating these components and systems, a welding production line can achieve high efficiency, consistent quality, and reduced manual labor, making it essential for high-volume welding operations in industries such as automotive, aerospace, and construction.
